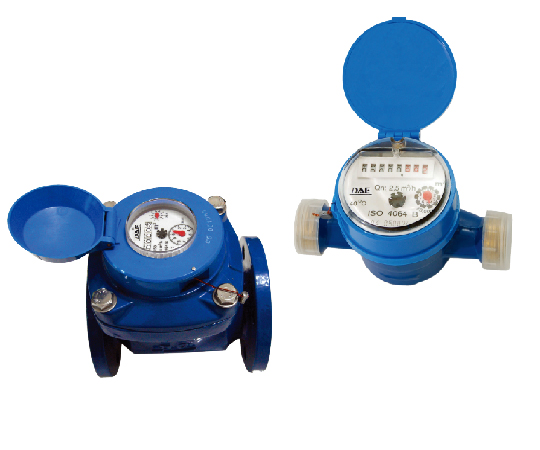

Water Meter (Pulse Output)

revenue meters

These water meters feature a pulse output that can be connected to a data collection device for remote auto meter reading.

They are ready for use with the AMR module or with the AMR100 display module, which are both also available from DAE. These modules accumulates the pulses, processes them as raw data count to a remote host when requested over an RS485 bus using the Modbus protocol.

pdf download Water Meter With Pulse Output datasheet, AS Series

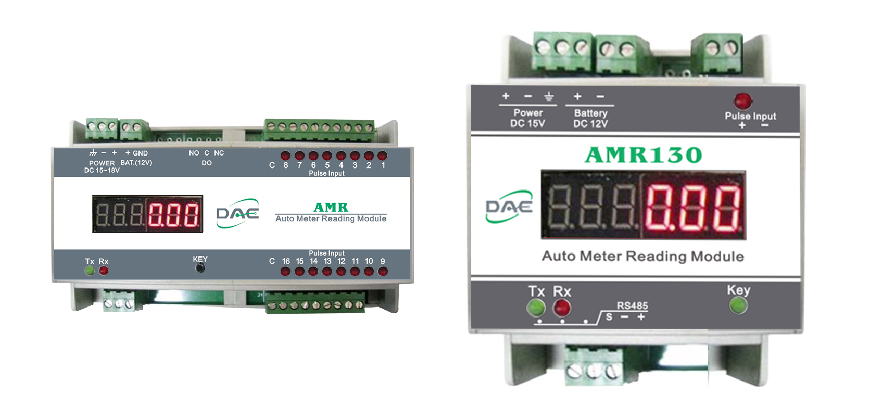

AMR Modules

AMR Modules

The AMR is a module specially designed for applications where the pulse output of water meters need to be incorporated into a Modbus/RS485 network for creating cost effective data acquisition and auto metering solutions.
