Introduction

Many kinds of interface devices are available to meet the demands of any scale, any budget and expansion needs.

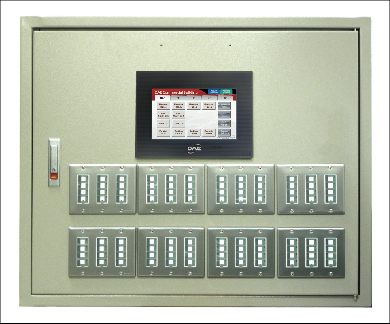

Many gang digital switch

Many Gang Digital Switch

Digital switches are suited for small scale building applications for up to 30 circuits.

Touch Panel Display

Touch Panel Display

Touch panels are suited for medium scale building applications for up to 300 circuits.

Control Center

Control Center

Host PCs are suited for large scale building applications when more than 300 circuits are needed.

Digital Switches

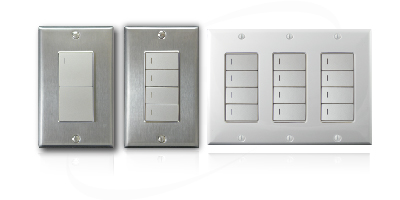

Various digital switches
  1. Can be installed on walls and also in power panels.
  2. Each button has indicator LEDs, labels may be changed by user.
  3. Setting through DIP switches or software, during maintenance the DIP switches on the new unit can first be set and then be used as replacement.
  4. Each button can be set for single, group or pattern mode of operation.

Touch Panel

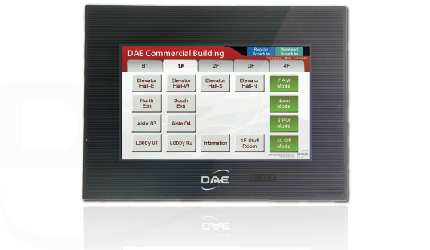

Touch panel (control center)
Touch Panel (Control Center)
  1. Areas and floors organized into pages for easy navigation.
  2. Easy to expand, occupies little space.
  3. Simplified schedule control, with separate tracks for regular days and weekends.
  4. Large number of control points, up to 576 buttons.
  5. Network connectivity option.

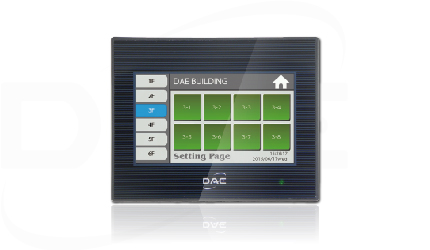

Touch panel (remote station)
Touch Panel (Remote Station)
  1. Areas and floors organized into pages for easy navigation.
  2. Easy to expand, occupies little space.
  3. USB port for configuration file upload.
  4. 4.3 inch LCD touch screen, up to 44 buttons.

Monitoring Software

Record Log Screen
Record Log Screen
  1. List all activities within a range of dates; or list all activities for a device and date.
Layout Diagram Screen
Layout Diagram Screen
  1. Show the lighting control points overlayed onto the floor diagram for a given floor or area.
  2. Each control point can be right-clicked to show its detailed information.
Schedule Setting Screen
Schedule Setting Screen
  1. Separate tracks for regular days and weekends, and with exceptions track for special days.
  2. New entries can be added for any desired time and circuit to be controlled.

System Integration

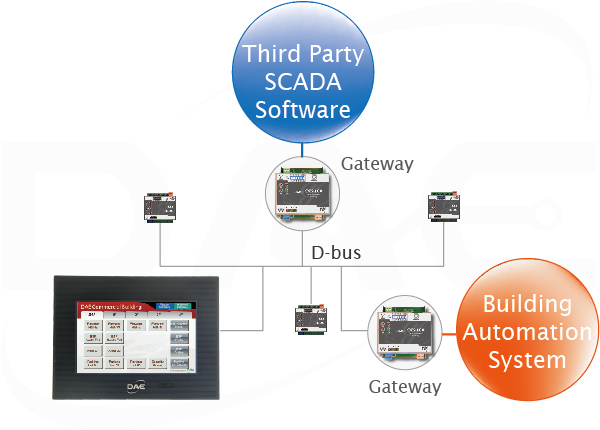

Third party system integration
  1. Very fast response to the central host
  2. Gateway supports either RS485 or Ethernet interface, and communicates through the Modbus/RTU protocol.

Mobile and Web

Integration with mobile devices and web

Any computer with a web browser or an Android based mobile device can also control the lighting by mirroring the screen on the touch panel display.

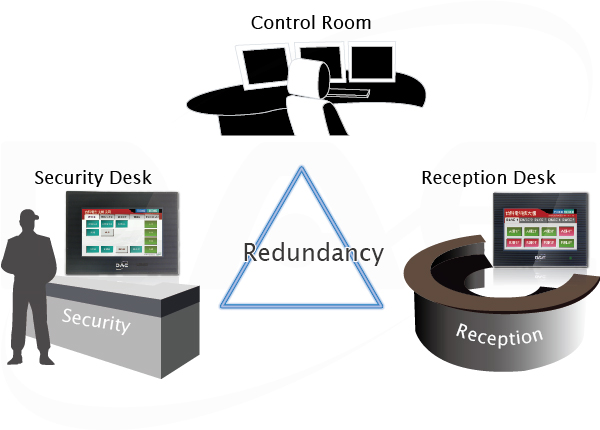

Multiple Hosts

Multiple access points
  1. Since the system is based on an architecture that does not have a central processor, multiple peer-to-peer hosts are made possible.
  2. The failure of any host does not affect any of the others; this allows for multiple redundancy where every other host can serve as backup control to cover the failure of another host.

Multiple Buildings 1

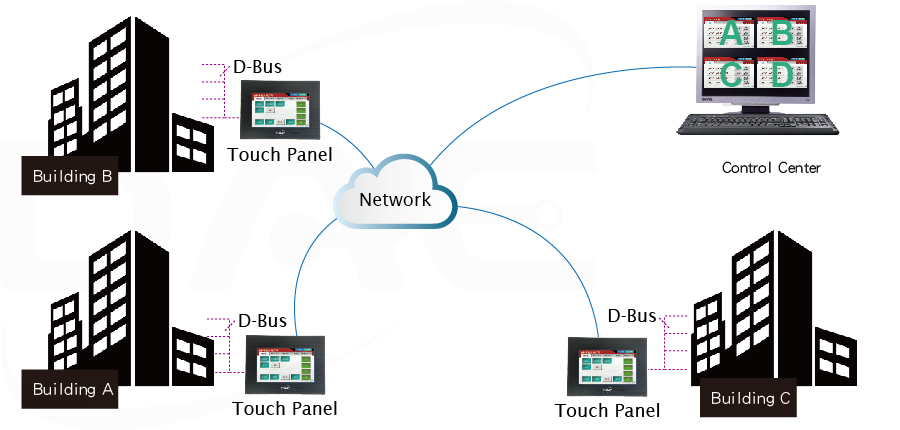

Multiple Buildings Integration using touch panels

Multiple Buildings 2

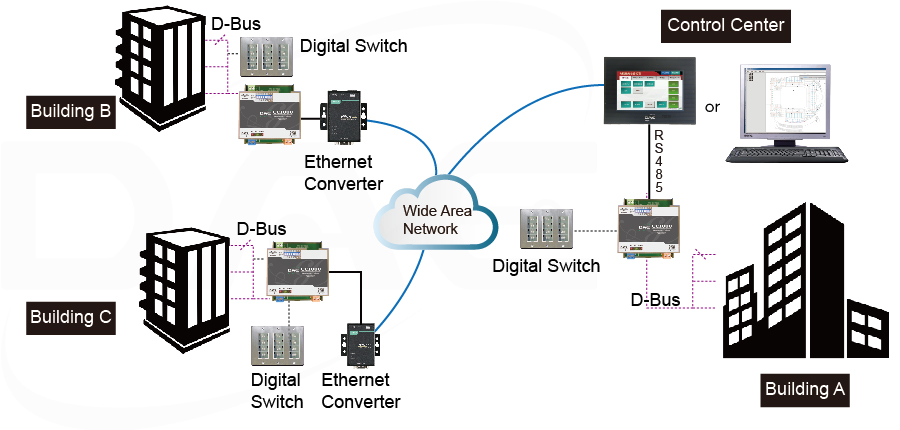

Multiple Buildings Integration using Gateways
