A scene lighting control system is designed to make it easy for the lights to match an activity or the stage of an event, a single touch is all it takes to transform the lighting scene or change the mood for the entire room.

Applications

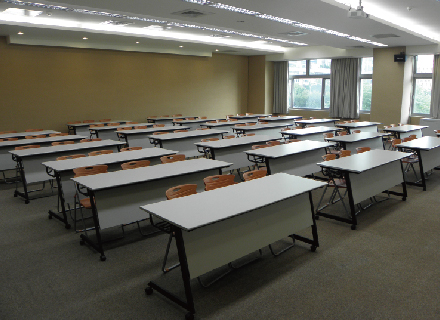

Meeting Rooms, Conference Rooms, Function Rooms

Banquet Halls, Coffee Shops, Taverns, Clubs

Gymsn, Theaters, Concert Halls

Ambience

Lighting Creates the Ambience of the Space

Whether it be in a commercial establishment, conference halls, showrooms or clubhouses, having good lighting to create an inviting atmosphere is a must and having a good lighting control system is absolutely indispensable.

The lighting scenes change in accordance with the stage of the event
  1. Ingress -> Speech -> Presentation - Discussion -> Egress
  2. Having the lights gradually change is soothing and adds elegance to the space.
  3. When the lights slowly dim hints to the audience that the event is about to start.

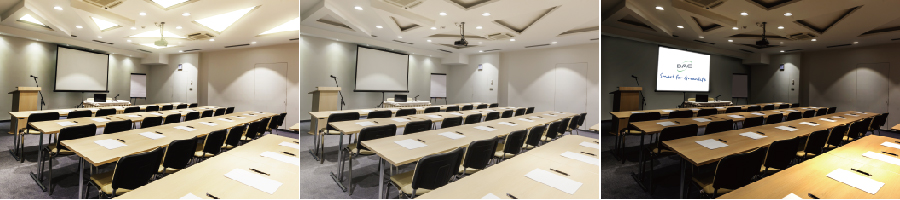

Scenes

Same Space, Different Activities

A function hall would have the lighting scene change to match the activity; e.g. speech, luncheon, concert.

Partitioning the Space

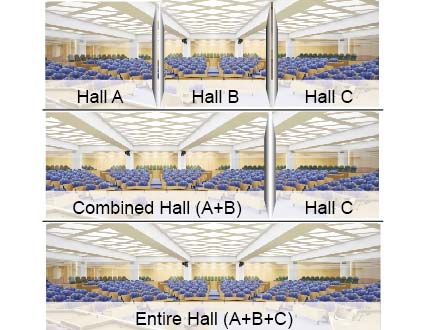

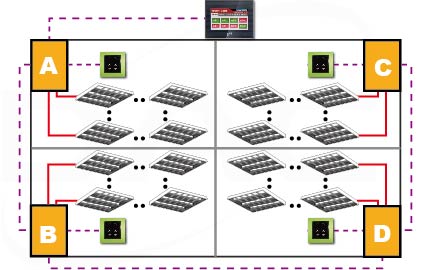

The lights can be grouped together to match the way the space is partitioned.

Dimming Control

Setup Using Tablet

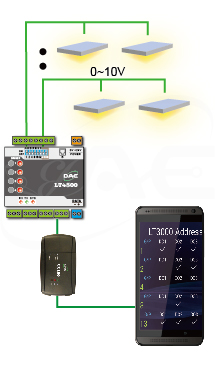

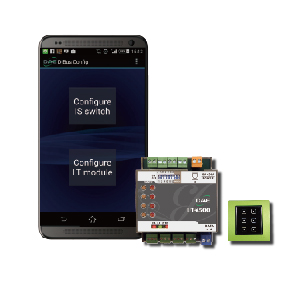

With a smart phone or tablet together with a converter, each button can be assigned individually. The setup information includes the group number, circuit number and dimming sensitivity.

Individual Dimming

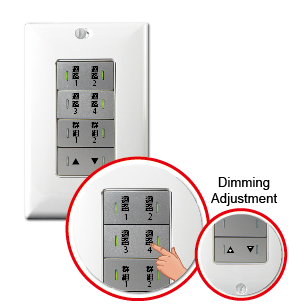

Any single mode button can be selected, then the dimming level is adjusted using the △▽ buttons.

Grouped Dimming

Any group mode button can be selected, then the dimming level is adjusted using the △▽ buttons.

Scalability

Highly scalable, no central processor needed, minimum is only four circuits and can be expanded up to 512 circuits, not restricted by the scale of the application and can be used in any type of space.

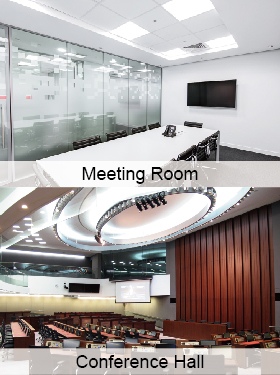

Meeting Rooms

Conference Rooms

Restaurants

Home Theater

Conference Halls

Stadiums

Equipment

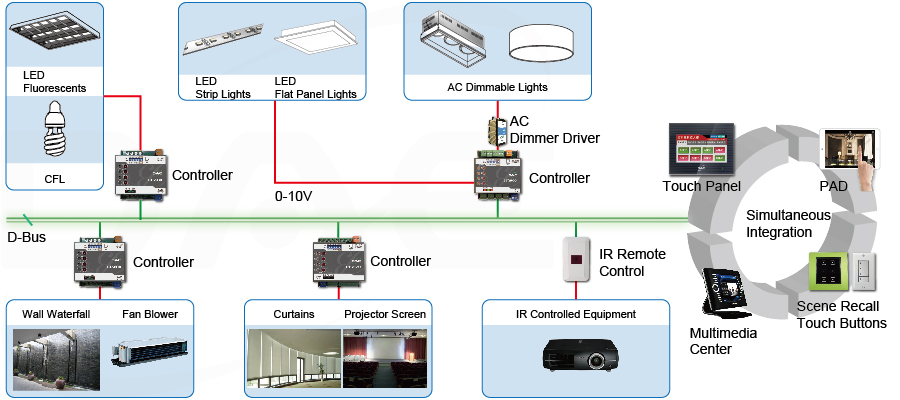

Various other types of equipment can be integrated, so they can be controlled together. When a space such as a meeting room requires that the projector and screen be included in the system, then the IS50 infrared remote transmitter can be used (integrated through IR learning). At the same time mobile phones and tablets can also be used for remote operation.

照明/窗簾/布幕/冷氣/紅外線系統架構

Foolproof

No need for special software to reconfigure the scenes, the user can change the preset scenes in 3 simple steps.

No Special Software Needed

Step 1: Enter Setting Mode

Step 2: Adjust the Brightness

Step 3: Touch The Button To Assign

User Control Devices

Various types of user control devices, one touch to transform the mood of the entire room.

Mobile Devices Software

Scene Recall Touch Buttons

D-Bus

Touch Panel

Multimedia Center

IR Remote Control

Flexibility

With simple wiring the switches can be placed anywhere.

Multiple Access Control

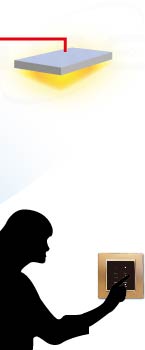

Anywhere that the digital cable passes through, a switch can be installed

  1. Any switch can be made to access any light anywhere in the lighting network.
  2. A single touch can recall the desired preset scene.

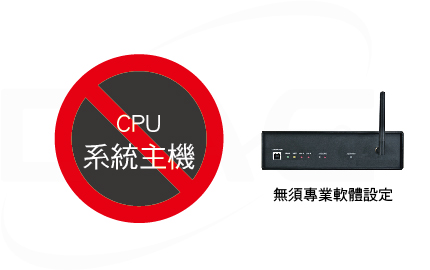

No Central Processor Needed

Benefits from not needing a central processor

  1. No need for custom software design. The user can make changes to the system themselves without having to rely on a specially trained technician to change the preset scenes.
  2. Totally eliminates the danger of having the entire system become inoperable from the failure of one critical component.

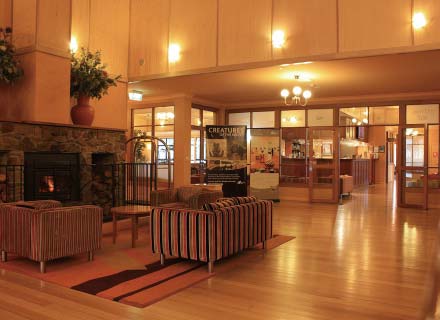

Transaction Office

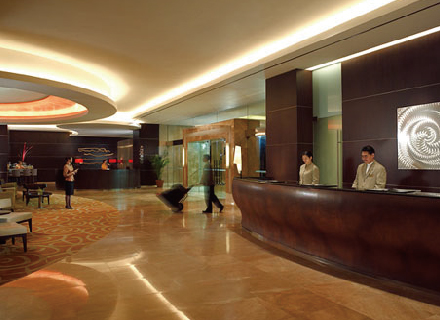

A hotel lounge, business center or restaurant is the main point of contact with the customer and must give a good impression.

  • The main lounge is divided into several sections. The power panel for each section may contain either modules that can dim or simply turn the lights on/off.
  • Each section would have its own independent control panel.
  • The touch panel screen is connected to the power panel through the main bus cable.
  • Dimming control: Different time of the day may have different lighting brightness to create a different atmosphere.

Function Hall

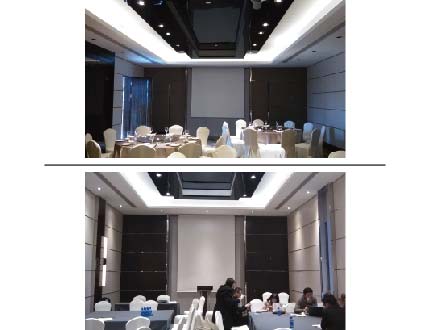

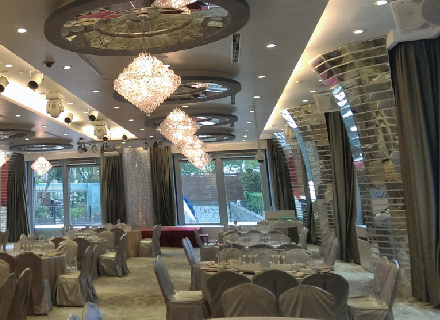

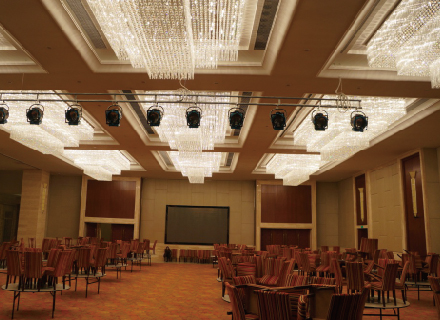

For places of business such as banquet halls, which may be used for different types of events or activities (such as luncheons, parties, speeches, gatherings), each would require a different atmosphere and mood which can be created through different combination of lighting and light brightness, such lighting scenes could change the focus for the occasion and even hint to the audience that the event is about to start by gradually dimming the lights, and it may even control the curtains to heighten the effect.

The desired combination of lights and dimness is first preset into designated buttons, so that when the occasion arise, a single light touch onto the corresponding button will activate the preset scene to create the desired atmosphere and mood for the occasion.

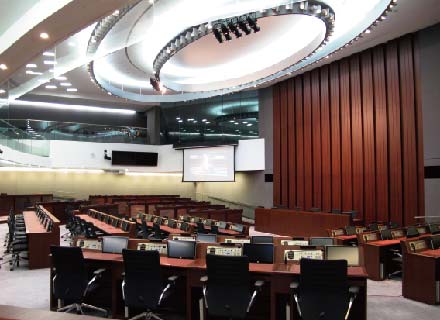

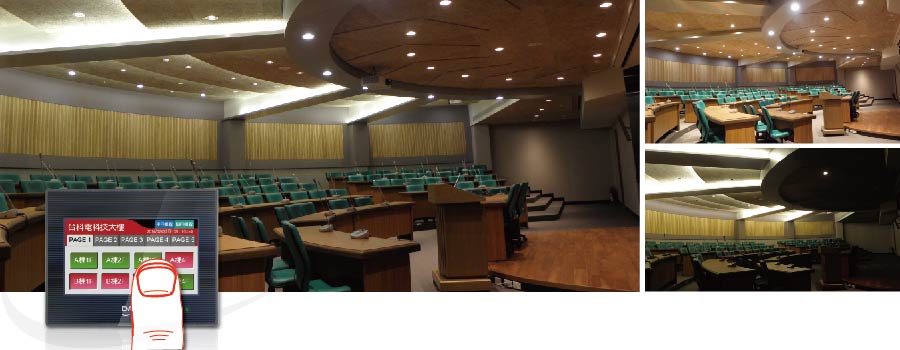

Conference Hall
